GANCHO DE PINO DE MONTAGEM RÍGIDA DE 50 TONELADAS - FORJADO
Recursos do produto

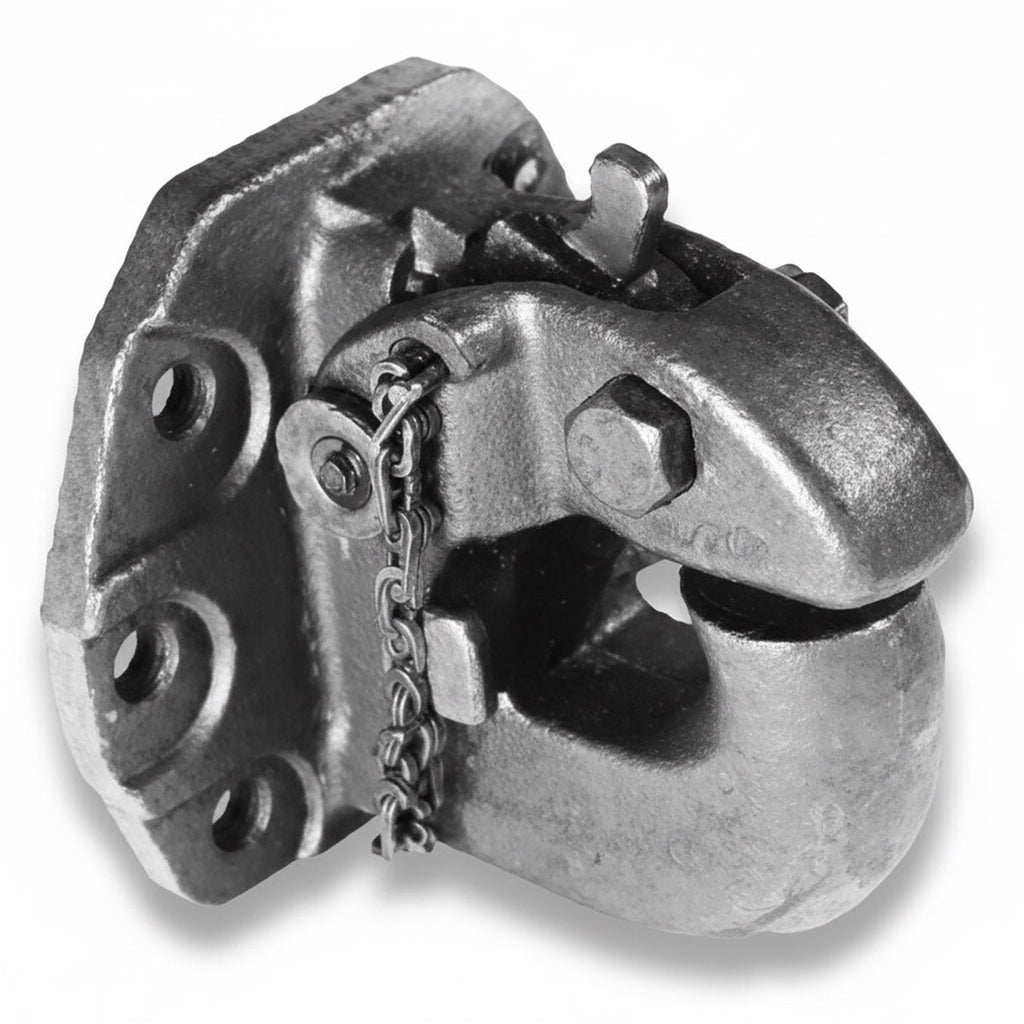

50 Ton Rigid Mount Offset 6 Bolt Pintle Hook
These Pintle Hooks are to be used with a drawbar with a 2⅜" to 3" diameter lunette eye and a ring thickness 1¼" to 1⅝". The mounting plate should be at least ⅞" thick.
Especificações do produto
| Product Type | Rigid Mount Pintle Hitch |
|---|---|
| Capacity | 100,000 Lbs. |
| Drawbar Eye I.D. | 2.375 - 3.00 Inch |
| Vertical Mounting Holes - Center | 2.50 Inch |
| Horizontal Mounting Holes - Center | 5 Inch to 7 Inch |
| Bolt Hole | 3/4 Inch |
| Max Vertical Load | 20,000 Lbs. |
| Capacity Range | 50,000 - 100,000 Lbs |
