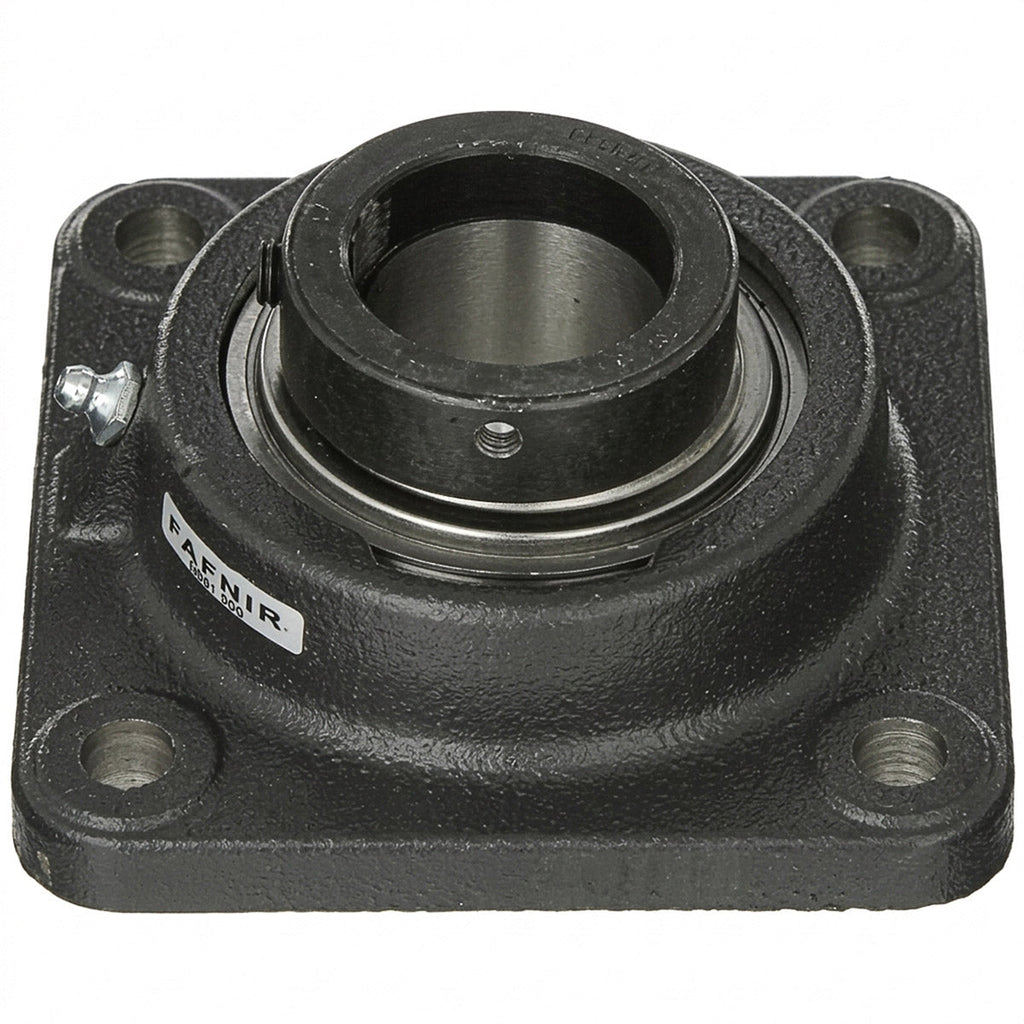

TIMKEN 4 HOLE FLANGE UNIT WITH 1" BEARING
Product Features
Features:
- Cast iron flange housing with four bolt holes for secure mounting
- Double rubber sealed single row ball bearing for use in industrial field applications
- Extended inner ring for increased shaft support
- Self-locking collar for securing the bearing to the shaft
- Stainless steel grease fitting on housing for reapplying lubricant
Product Specifications
| Bearing I.D. | 1" |
|---|---|
| Bearing Type | Housed Units |
| Greasable / Sealed | Greasable |
| Housing Type | 4 Hole |
| Inner Race | Wide |
| Shaft Lock Type | Lock Collar |
| Bore Shape | Round |
| Brand | Timken |
| Interchange Numbers | 308VCJ1, ASAFNR1R, DEL-WGFZ16, F3-Y216N, F3Y216N, FWG1R, VCJ1, WGFZ16 |
