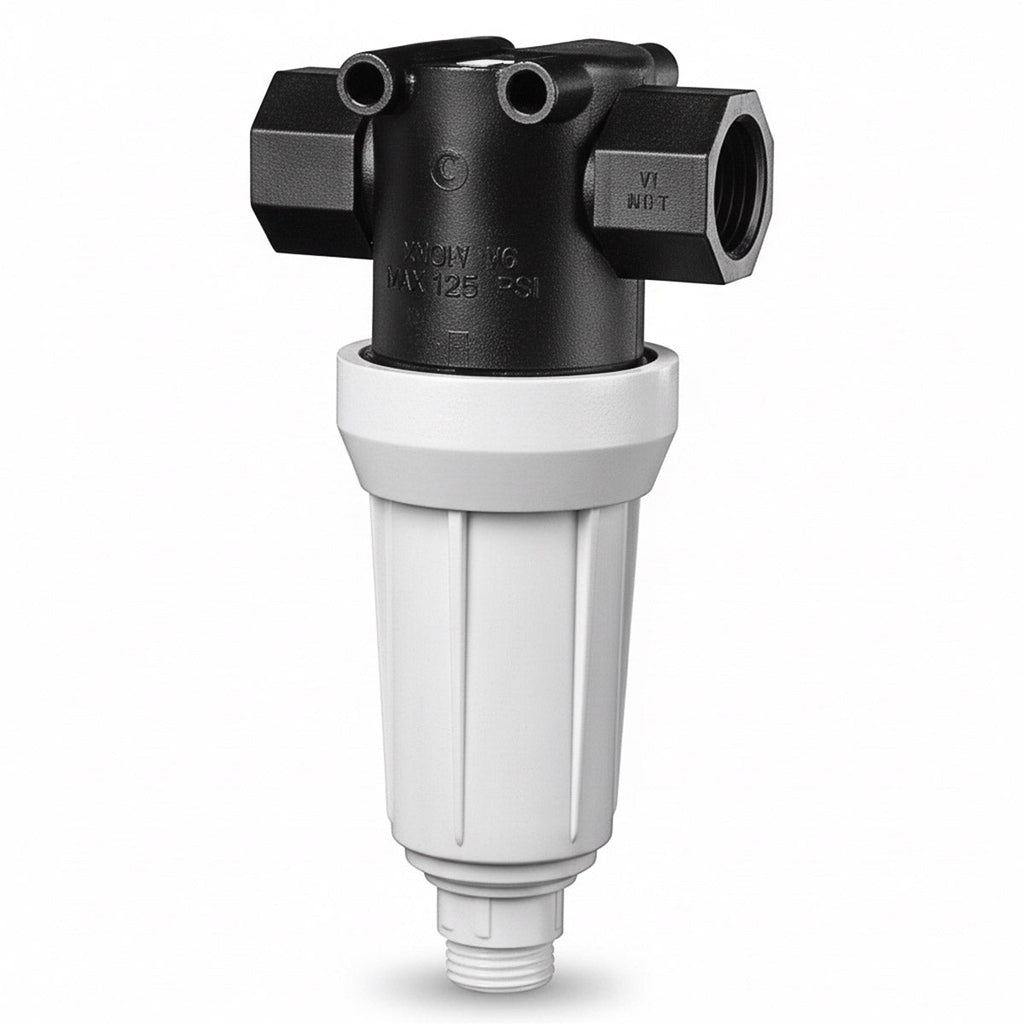

TEEJET 1-1/2" X 50 MESH POLY LINE STRAINER
Product Features
TeeJet Line Strainers
AA126 Flush-Out Line Strainer
- Removable cap and O-Ring for flush-out or self cleaning operations.
- 200 PSI (14 bar) maximum pressure rating.
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16 " diameter bolts.
- Available with 3/4 ", 1 " NPT or BSPT (F) threads and 50 series flange fitting connections for easy assembly. Uses same screen as AA124A line strainer.
Product Specifications
| Connection | NPT |
|---|---|
| Connection Size | 1-1/2 Inch |
| Connection Specification | 1-1/2 Inch NPT |
| Material | Poly |
| Screen Size | 50 Mesh |
| Strainer Type | T Strainer |
| Max PSI Rating | 200 PSI |
| Replacement Bowl | CP48654PP |
| Replacement Gasket | CP48656EPR or VI |
| Replacement Screen | CP15941 Series |
| Brand | TeeJet |
| Interchange Numbers | AA126ML-6-50 |
