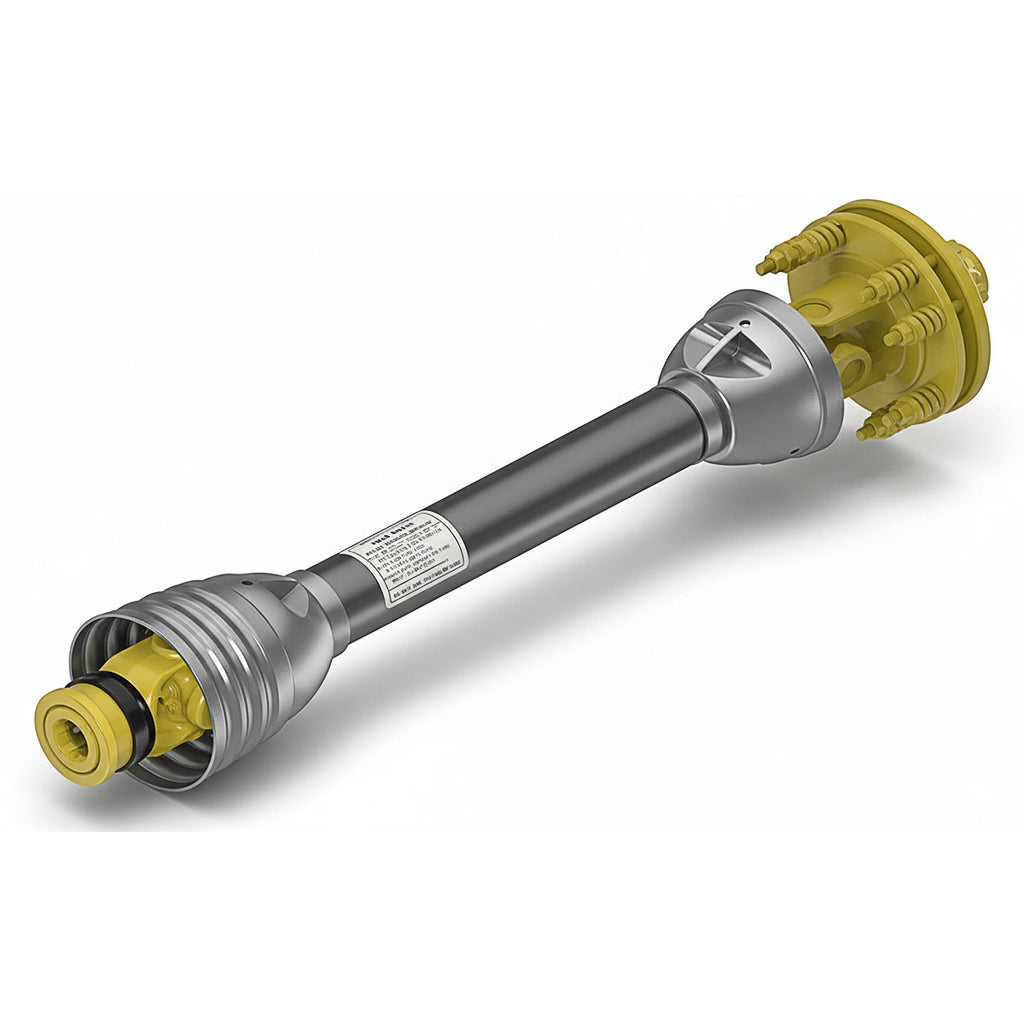

STANDARD SERIES METRIC DRIVELINE - BYPY SERIES 4 - 36" COMPRESSED LENGTH - HAS FRICTION CLUTCH - FOR ROTARY CUTTER AND TILLLER GENERAL APPLICATIONS
Product Fitment
| Make | Type | Model |
|---|---|---|
| Behlin | Rotary Tiller | 80118030ORG, 80118040YEL, 80118050YEL, 80118060YEL |
| Bush Hog | Rotary Tiller | RT60G, RT60GR, RT72G, RT72GR, RT84G, RT84GR, RTM, RTN, RTS |
| Howse | Rotary Tiller | RTC48, RTC62, RTC70, RTR85, UH84, UL48, UM60, UM72 |
| John Deere | Rotary Tiller | TG-48, TG-72Y, TH-60Y |
| King Kutter | Rotary Cutter | L-60-40-SC, L-60-60-SC |
| King Kutter | Rotary Tiller | RTG-60, RTG-72, TG-48-XB, TG-54-XBX, TG-60, TG-72, TG-84, TG-G-48, TG-G-60, TG-G-72, TG-G-84 |
| Tarter | Rotary Tiller | RT205BL, RT206BL, RT207BL, RTC48, UL48 |
Product Features
Weasler Standard PTO Drive Shafts
Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all-purpose use and meet the requirements of small farms and consumers.
The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
Product Specifications
| Bondioli-Pavesi PTO Series | 4 |
|---|---|
| Weasler Brand Series | Standard |
| Compressed Overall Length | 36.00 Inches |
| Driveshaft Application | Rotary Cutter/Tiller |
| Driveshaft Implement End | 1-3/8" 6 Spline Friction Clutch |
| Implement Yoke Part Number | 563-8406-03 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | Complete Drive Shaft |
| PTO Tubing Shape | Trilobe Tube |
| Tractor Yoke Lock Type | Safety Slide Lock |
| Tractor Yoke Part Number | 101-8406 |
| Tractor Yoke Size | 1-3/8" 6 Spline |
| Clutch Torque Rating | 8,000 in*pounds |
| Cross & Bearing Cap Diameter | 1.06 Inch / 27.0mm |
| Cross & Bearing Overall Length | 2.94 Inch / 74.60mm |
| Brand | Weasler |
