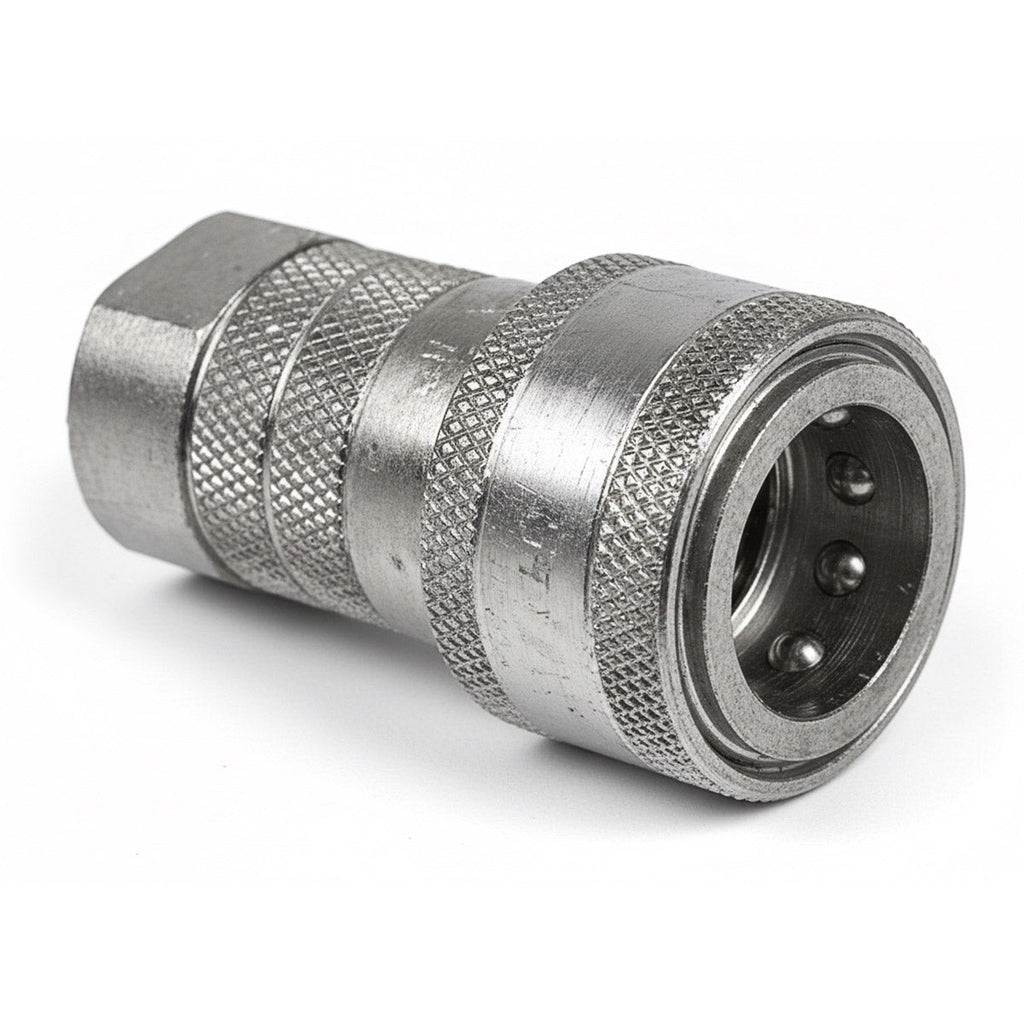

S20 SERIES 1/2" QUICK COUPLER BODY
Product Features
S20 Series - Manual Sleeve Design
Female Coupler Body
SafeWay’s S20 Series is a general purpose, double shut-off, fluid transfer quick coupling available with either a rugged ball valve or leak-free, high flow poppet valve. The S20 Series is used primarily on agricultural equipment and is recognized as an economical and reliable quick coupling. This series is original equipment on snow plows, garden tractors, full size tractors, front-end loaders, skid steer loaders, earth moving, and mining equipment.
- 1/2" body size meets dimensional requirements of ISO 5675.
- Double shut-off design available with either a rugged ball valve or leak-free, high flow poppet valve.
- Reliable and durable ball locking mechanism provides smooth operation time after time.
- Critical parts are hardened for long service life.
- One-way sleeve design allows implement break-away when the coupling is clamp mounted.
- Interchangeable half-for-half with the Parker/Pioneer 4000 Series.
Product Specifications
| Coupling Product Category | Hydraulic Quick Coupling |
|---|---|
| Coupling Sub Product Category | Female Coupling Body |
| Complete Coupler Number | S20-4 |
| Coupler Body Size | 1/2 Inch |
| Thread Size | 1/2 - 14 NPT |
| Max PSI | 3000 PSI |
| Rated Flow | 12 GPM |
| Ball or Poppet Valve | Ball |
| Sleeve Operation | Manual Connect |
| Connect Under Pressure | No |
| Brand | Safeway |
| Interchange Numbers | 4RF4, DCS254, S25-4 |
