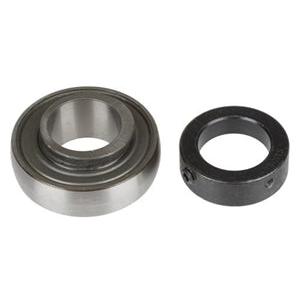

RELUBE INSERT BEARING 1-1/2" ID - NARROW INNER RING
Product Features
Ball Bearing Insert
Narrow Inner Ring - Greasable Standard Agricultural Applications
GRA-RB Series
- Narrow Inner ring type with self-locking collar
- Same as RA..RRB Series except has provision for re-lubrication
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 1-1/2" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Greasable |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 80mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 208 |
| Inner Ring Width | 1.188 Inch |
| Outer Ring Width | .866 Inch |
| Brand | Timken |
| Interchange Numbers | 243030, 478038R92, 7711328, 86502702, ANPS108RR, GRA108NPPB, JD9334, JD9354, NPS108RRC, SPA24, YET108208 |
