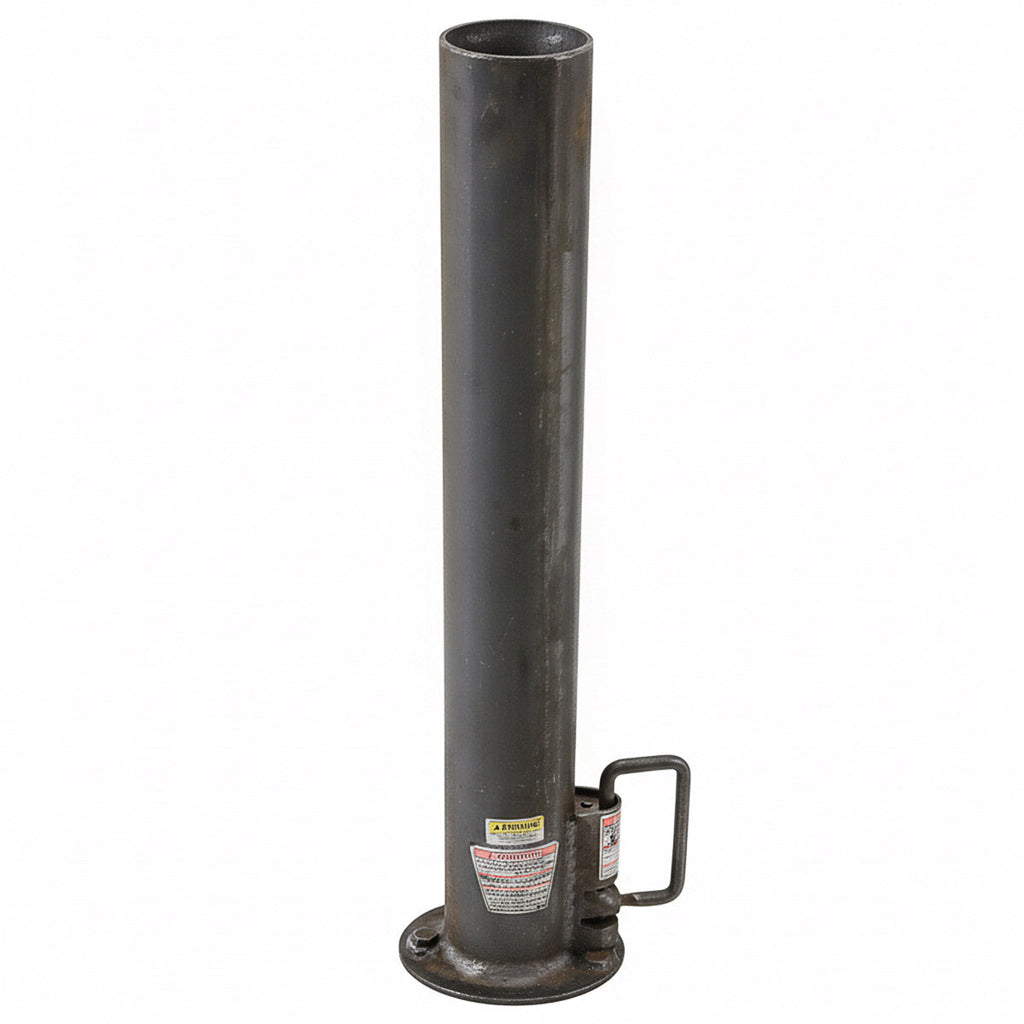

RAM ROUND TUBE GOOSENECK ADJUSTABLE COUPLER - 2-5/16" BALL / 25,000 LB CAPACITY
Product Features
RAM Adjustable Gooseneck Coupler - 25,000 Lb Capacity
- Precision cast head design features EXCLUSIVE ONE PIECE COUPLER CASTING with a curved internal ball clamp bar for greater strength and even better fit!
- Hidden spring latch mechanism within casting for ease of use and protection of moving parts
- All gooseneck couplers with load bearing pin meet the SAE J2638 standard
- 30K gooseneck couplers and 25K and 30K square tube gooseneck couplers include a welded belly band on the bottom of the outer tube for added strength
- Head Repair Kit = 402-2277403
Product Specifications
| Capacity | 25,000 Lbs. |
|---|---|
| Trailer Ball Diameter | 2-5/16 Inch |
| Trailer Coupler Mount | Gooseneck Trailer |
| Outer Tube Size | 4-1/2 Inch |
| Retracted Height | 29.2 Inch |
| Adjustment | 8 Inch |
| Outer Tube Length | 20 Inch |
| Inner Tube Size | 4 Inch |
| Inner Tube Length | 27.20 Inch |
| Gooseneck Coupler Style | Adjustable |
| Capacity Range | 12,500 - 25,000 Lbs |
| Interchange Numbers | 0287600300 |
