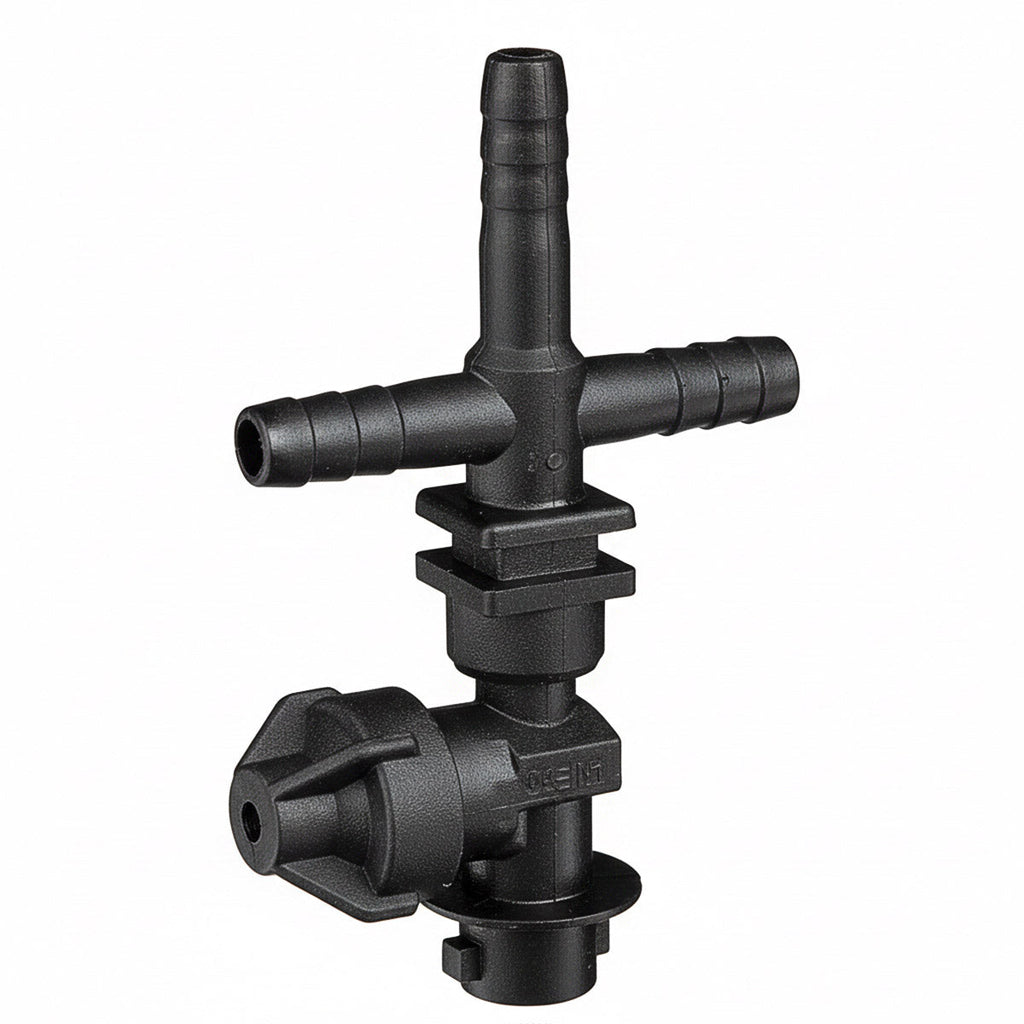

QUICKJET TRIPLE BARB NOZZLE BODY - 3/4" HOSE - HAS SIDE DIAPHRAGM
Product Features
QuickJet Single Nozzle Body Assemblies for Dry Booms
QJ200 Series with Diaphragm Check Valve
- Series Available with single, double or triple hose shanks for 3/8", 1/2" and 3/4" I.D. hose.
- Drip-free shutoff with TeeJet ChemSaver®. Opens at 10 PSI (0.7 bar).
- Standard diaphragm is EPDM with Viton® optional.
- Maximum operating pressure of 125 PSI (9 bar).
- Flow rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) at 10 PSI (0.69 bar) pressure drop
Product Specifications
| Connection Size | 3/4 Inch |
|---|---|
| Boom Component Category | Nozzle Body |
| Nozzle Body Type | QuickJet Nozzle Body |
| Nozzle Body Sub Type | Triple Hose Barb |
| Wet / Dry Boom | Dry Boom |
| Material | Nylon |
| Connection Specification | (3) 3/4" Hose Barb x QuickJet Body |
| Brand | TeeJet |
| Interchange Numbers | 233419351213785NYB, 5056076, 700-1426 |
