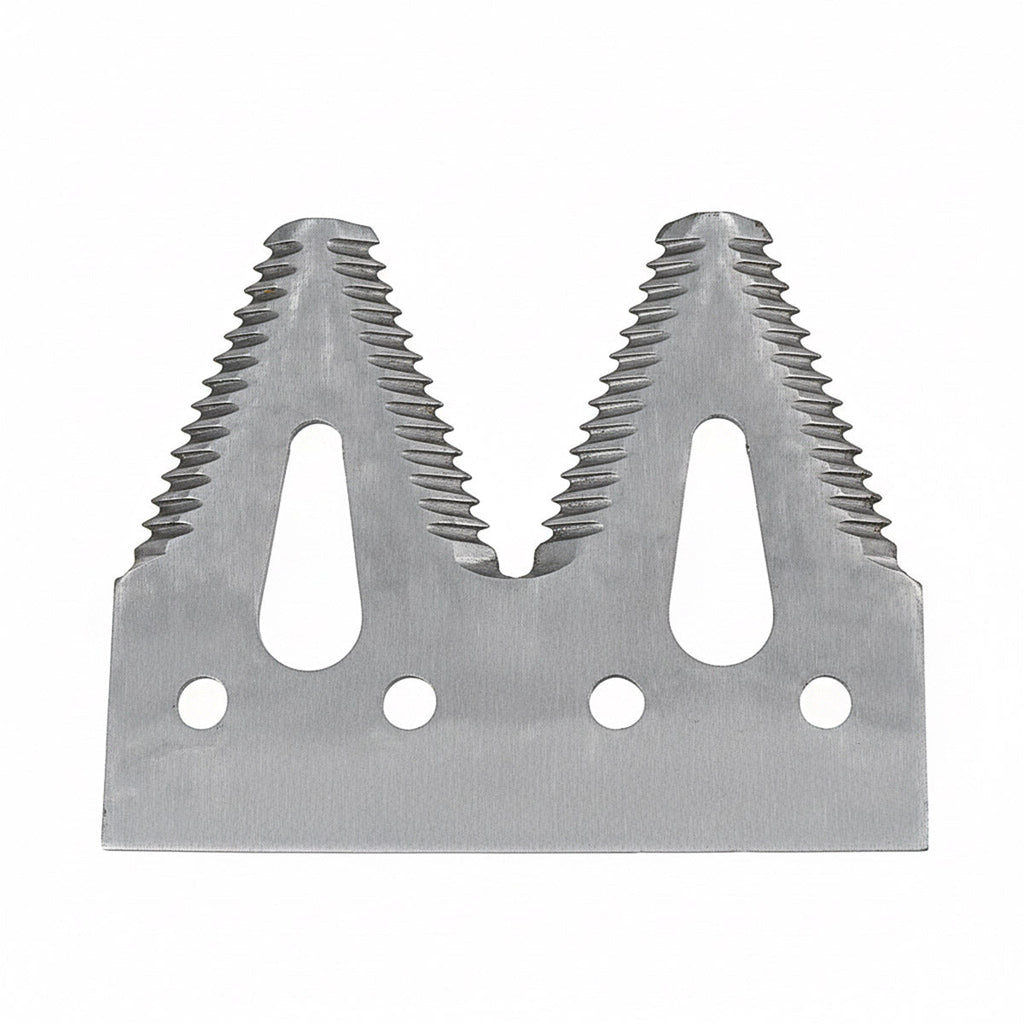

Kondex Combine Section for John Deere H163131 - Extra Coarse, 10-Pack
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Combine Header | 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 625F, 625R, 630D, 630F, 630FD, 630R, 635D, 635F, 635FD, 640D, 640FD, 645FD, 725D, 730D, 730FD, 735D, 735FD, 740D, 740FD, 745FD, 925D, 930D, 936D, HD35F, HD35R, HD40F, HD40R, HD45F, HD45R, HD50F, HD50R, RD30F, RD35F, RD40F, RD45F |
Product Features
For John Deere 600 and 900 Series Headers
Austempered sickle sections provide a substantially tougher and longer lasting product. Uniquely heat treated that is through-hardened the entire section - compared to only heat treating the cutting portions on the edges.
Austempering results in fewer broken sections and noticeably less wear.
Product Specifications
| Serration Profile | Top Serrated |
|---|---|
| Serration Spec | Extra Coarse - 7 Tooth |
| Width | 4 Inch |
| Length | 3-1/4 Inch |
| Hole Spacing | 1 Inch |
| Section Finish | Plated |
| Section Thickness | Extra Heavy |
| Fastener Size | M6-1.0 x 16.25mm |
| Bolt / Nut Kit | 491-458077 / 458078 / 458079 |
| Shape Series | 17 |
| Brand | KONDEX |
| Heat Treat | Austemper |
| Interchange Numbers | H163131 |
