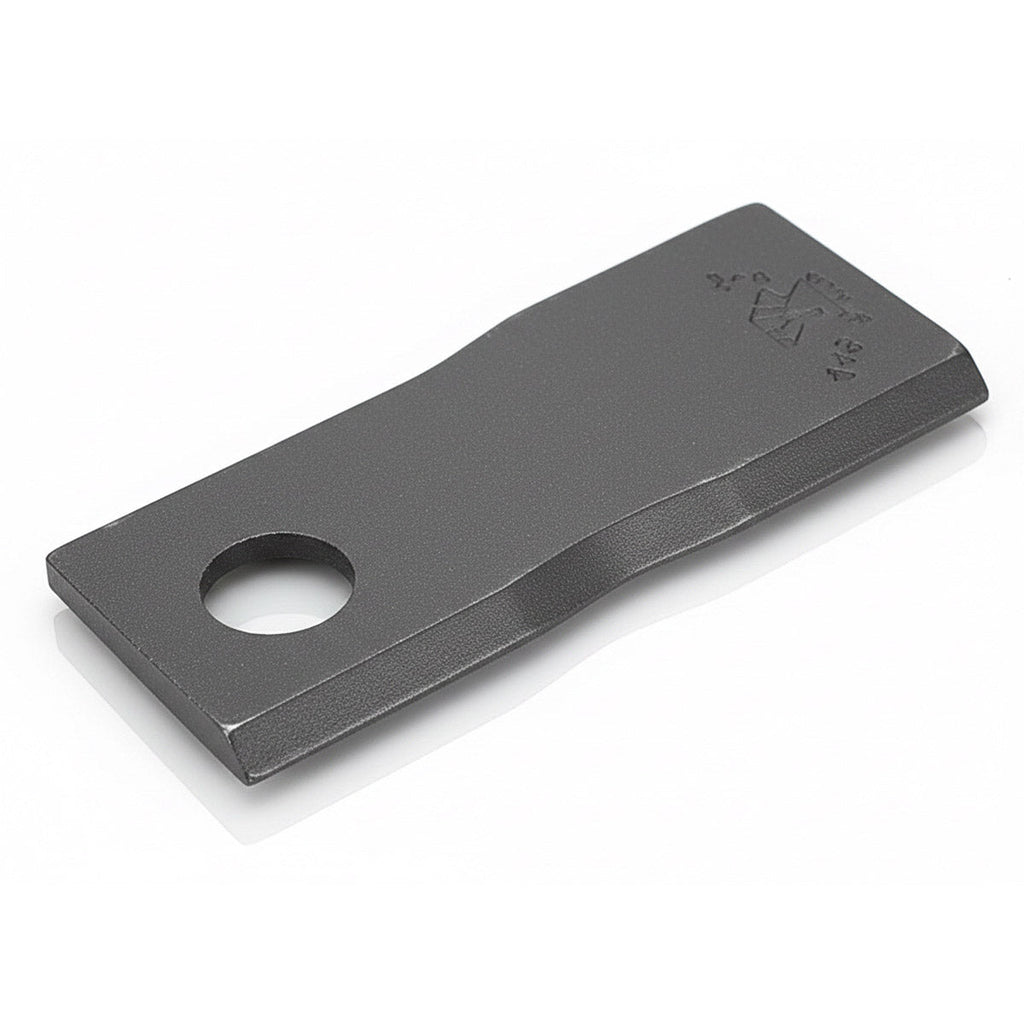

DISC MOWER DRUM KNIFE FOR CASE IH / NEW HOLLAND LEFT HAND - REPLACES 9847684 - 7° TWIST
Product Fitment
| Make | Type | Model |
|---|---|---|
| Case IH | Disc Mower | DC132, DC132F, DC162, DC162F, DC92, DC92F, DCX101, DCX131, DCX131F, DCX161, DCX91, MD72, MD82, MD92, MDX71, MDX81, MDX91, RD132, RD162, RD182, RDX131, RDX161, RDX181, TD102 |
| New Holland | Disc Header | 2331, 2332, 2353, 2355, 2358 |
| New Holland | Disc Mower | 1409, 1410, 1411, 1412, 1431, 1432, 1441, 1442, 232, 2353, 615, 616, 617, 720HD, 720TD, 750HD, 820TD, H6730, H6740, H6750, H6830, H7220, H7230, H7320, H7330 |
Product Specifications
| Bolt / Nut Kit | RF925K for Case IH / New Holland |
|---|---|
| Bolt Hole Size | 0.889 Inches, 22.6 mm |
| Length | 4.3 Inches, 110 mm |
| Shape | 10 |
| Thickness | 0.16 Inches, 4.0 mm |
| Twist Degree | 7 Degree |
| Width | 2.0 Inches, 51 mm |
| Rotation | Counter Clockwise ( Left Hand ) |
| Pair | 798-RM683 |
| Brand | KONDEX |
| Interchange Numbers | 48054144, 89847684, 9847684, B45-6721-CF, B45-6721CL, D21-202 |
