Diamond Chain Connecting Link - #50
Product Features
Nothing Outlasts a Diamond® by Timken
Longer lasting chain results in less downtime and better return on investment

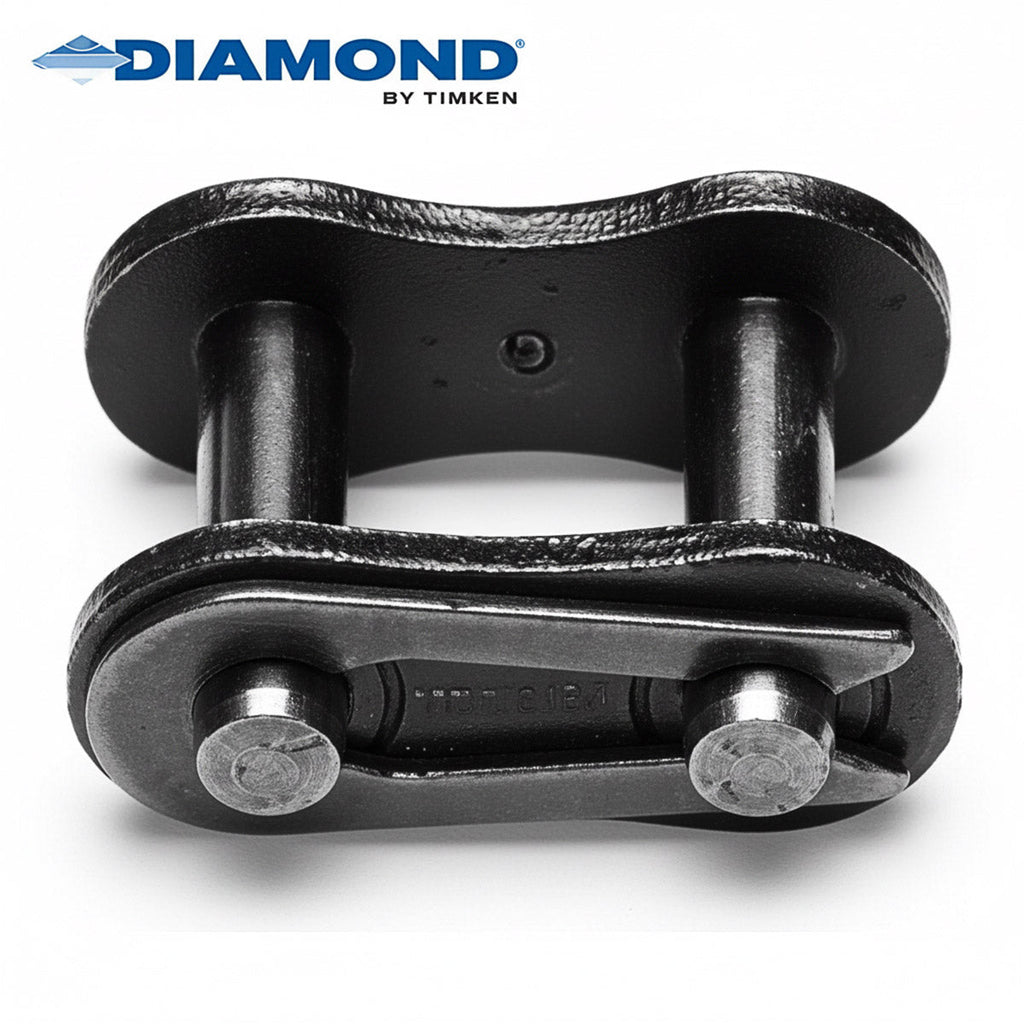

Spring Clip Connecting Link
Standard connecting link for up to ANSI 60 chain. The cover linkplate is held in place by a spring clip, split at one end to permit easy installation and removal.
Product Specifications
| Chain Size | 50 |
|---|---|
| Chain Category | Connecting Link |
| Strands | Single |
| Link Plate | Standard |
| Pitch - Inches | 5/8 Inch |
| Roller Width | 3/8 Inch |
| Overall Width | 0.83 |
| Roller Diameter | 0.4 |
| Pin Diameter | 0.2 |
| Material | Carbon Steel |
| Brand | Diamond |
| Interchange Numbers | 217-1050, 4262DA, 50CLD, ACL50 |
