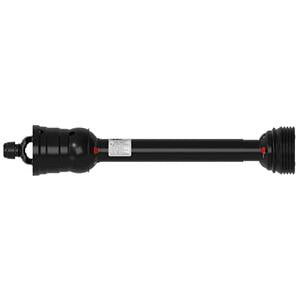

CV DRIVELINE - CV CAT 5 - 48" COMPRESSED LENGTH - 35 SERIES SPLINED SHAFTING - 1-3/8 6 SPLINE TRACTOR YOKE
Product Features
Category 5 CV Complete Drive Shaft
35 North American Series
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Product Specifications
| UPC | 728357400402 |
|---|---|
| Compressed Overall Length | 48.00 Inches |
| CV Category | Cat 5 |
| Driveshaft Application | All Purpose |
| North American PTO Series | 35 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Complete Drive Shaft |
| PTO Tubing Shape | Splined Shaft |
| Splined Shafting Size | 1-11/16 20 Spline |
| Driveshaft Implement End | Minus End Yoke |
| Tractor Yoke Lock Type | Auto-Lok |
| Tractor Yoke Size | 1-3/8" 6 Spline |
| Tractor Yoke Part Number | 111-3506 |
| Cross & Bearing Cap Diameter | 1-3/16 Inch / 30.22mm |
| Cross & Bearing Overall Length | 4-3/16 Inch / 106.50mm |
| Brand | Weasler |
| Interchange Numbers | 14505848, 266014503548, 971-14503548, A14503548 |
