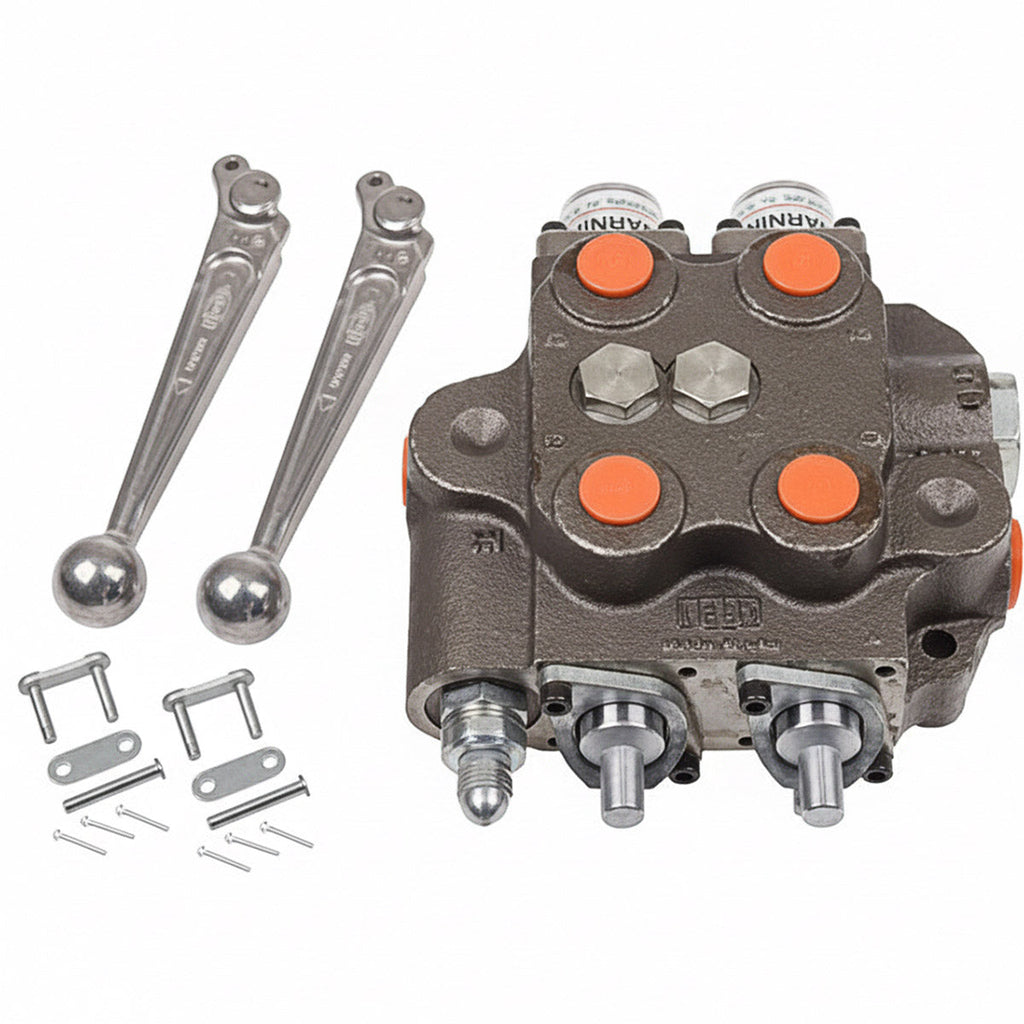

Cross 143799 Hydraulic Directional Control Valve - 2 Spool, Open Center
Product Features
Features:
- 2500 PSI Operating Pressure
- 30 GPM Flow Rate
- First Spool 4-Way 4-Position
- Second Spool 4-Way 3-Position
- Spring Centering
- Adjustable Relief Set at 2000 PSI
- End Ports
- Power-Up / Power-Down
- Handles Included
Product Specifications
| Number of Valve Spools | 2 |
|---|---|
| Hydraulic Systems | Open |
| Max Flow | 30 GPM |
| Spool 1 Specification | 4 Way, 4 Position, Open Center, Detent Float Position |
| Spool 1 Action | 4 Position, Spring Centering To Neutral, Float Position Detent |
| Spool 2 Specification | 4 Way, 3 Position, Open Center |
| Spool 2 Action | 3 Position Spring Centered |
| Relief Port | Adjustable 1500-2500 PSI (Set At 2000 PSI) |
| Power Beyond Port | Conversion Plug |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf |
| Handle | Comes With Handles |
| Brand | Cross |
| Interchange Numbers | 262-1201, ASBAF2, SBA-F2, SBAF2 |
