AgSmart Roller Chain Offset Half Link - #80 Single Strand, 2-Pack
Product Features
AgSmart Roller Chain
Keeping your Equipment Running

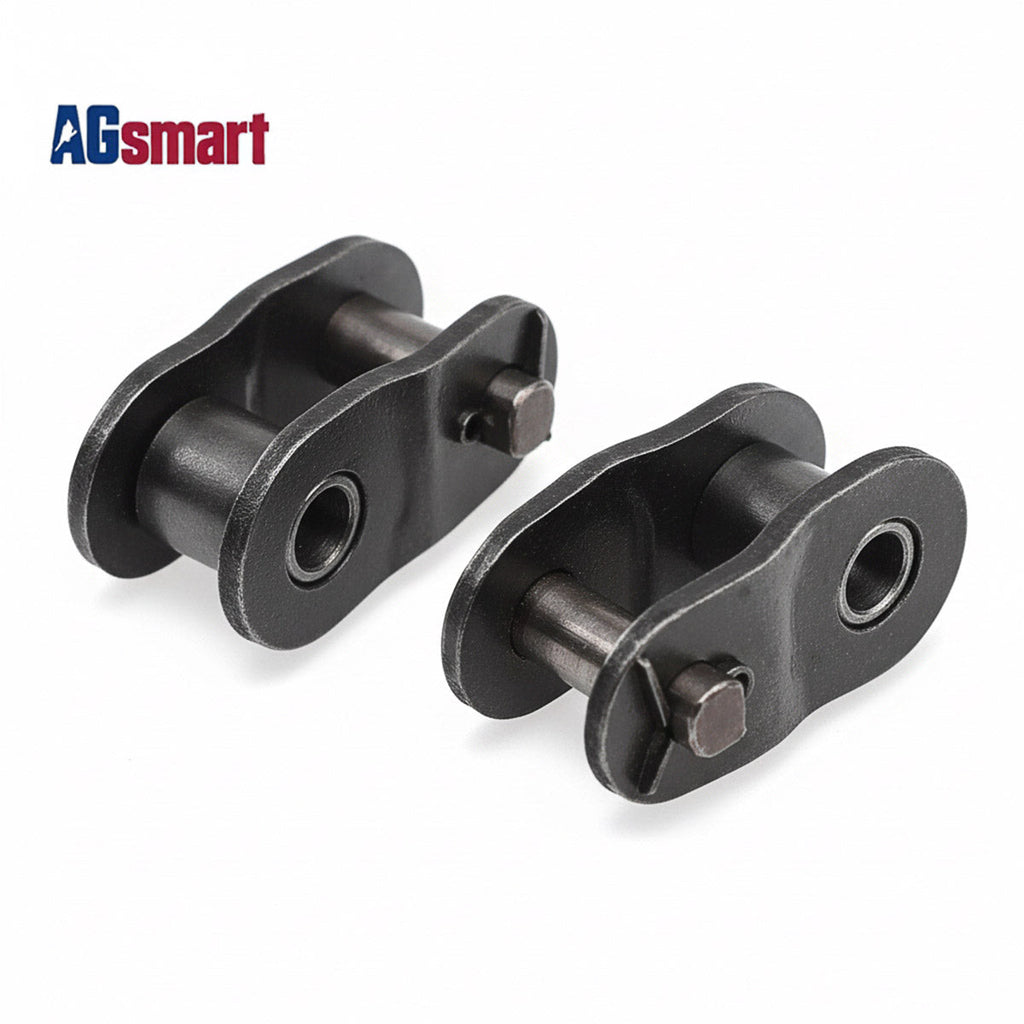

Offset Link / Half Link
Offset links are used when the chain length is an odd number of pitches; however, their fatigue strength is lower than standard chain links. Using offsets should be avoided when possible
Product Specifications
| Chain Size | 80 |
|---|---|
| Chain Category | Offset Link |
| Strands | Single |
| Link Plate | Standard |
| Pitch - Inches | 1 Inch |
| Roller Width | 5/8 Inch |
| Overall Width | 1.32 |
| Roller Diameter | 0.625 |
| Pin Diameter | 0.312 |
| Material | Carbon Steel |
| Brand | AgSmart |
| Interchange Numbers | 140775, 203-1080, 241-1718, 42367200, 654439R91, 700085720, 80-1OL2, 80140775, 80785993, 80OF, 80OL, 85720, 86977428, 87779110, AHL80GV, AOL80IMP, CS-7334, H750562, K3497, S80 |
