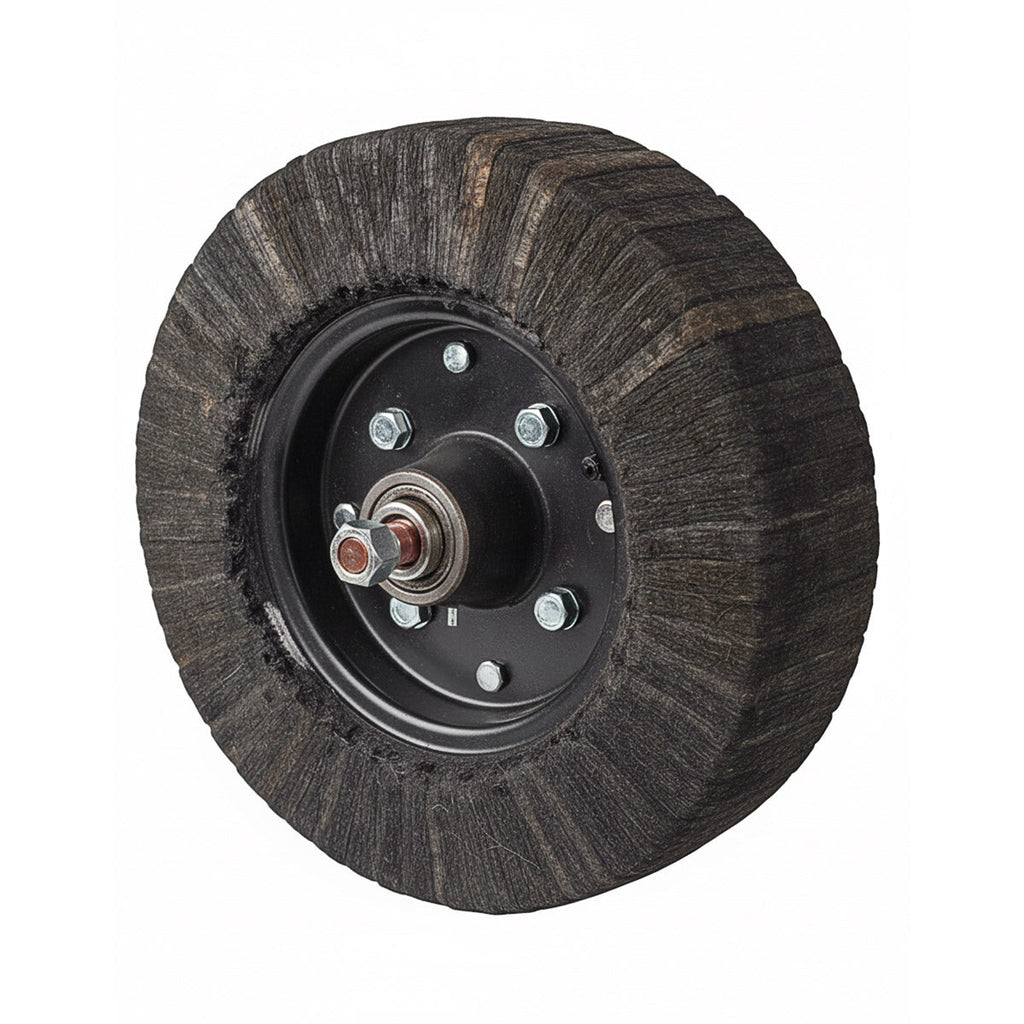

4 X 8 ROTARY CUTTER TAIL WHEEL AND CAST IRON HUB ASSEMBLY
Product Fitment
| Make | Type | Model |
|---|---|---|
| Bush Hog | Rotary Cutter | 104, 105, 1050, 1051, 109, 1109, 1126, 12, 1209, 1226, 126, 1307, 1405, 1406, 266, 305, 306, 307, 405, 405HR, 406, 406HR, 502, 600 |
Product Features
KIT CONTAINS:
| Qty. | Item ID | Description |
| 1 | 016-TW484 | 4 X 8 MOWER TAIL WHEEL |
| 1 | 982-281101 | 4 BOLT HUB |
| 1 | BH1317 | AXLE BOLT |
| 1 | 15622BH | AXLE NUT |
| 2 | 982-911251 | LONG TAIL WHEEL SPACER |
| 2 | 851-IM44643 | TAPERED ROLLER BEARING CONE |
| 2 | 982-906282 | GREASE SEAL |
| 4 | 120-816458 | 1/2 HEX BOLT |
| 4 | 120-8598 | 1/2 INCH LOCKWASHER |
Product Specifications
| Diameter | 15 Inch |
|---|---|
| Pilot Hole | 3-5/8 Inch |
| Bolt Pattern | 4 Bolt on 5 Inch Circle |
| Brand | TISCO |
| Interchange Numbers | A215BH |
